Chequered Tile Object

As I said in a previous post, a chequered tile object is something I wanted to create. Well, here it is.

• Like the other tile objects, it can be used for floor or wall cladding.
• Either or both of the alternating materials can be textures from the loaded library or RGB colours. In the case of the latter, you can choose the type of material it will be (Matte, Metallic, Dull Shine or Transparent).
• In 2D, you can choose whether you want to show the chequered pattern with fills.

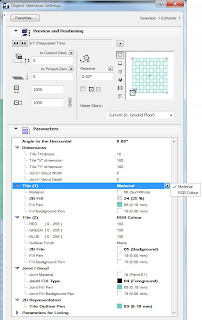

The second image lists all the available parameters.

For ArchiCAD 13+
Download [11kB]

Simple Filing Cabinet - ArchiCAD Object

Parameters

A simple filing cabinet which I find very useful.

For ArchiCAD 12+
Download [9kB]

Random Tile Object - Update

Type 2. RGB Colour with variation

As mentioned in an earlier post, I got in touch with Zahari (Zach) Dimitrov and, since then, he's uploaded a corrected version of his tile object to the depository.  However, I wanted more control over an object like this (especially for a current project) so I tried to extend it. Finding myself restricted by the parameters and wanting to remove the usage of CUTPLANE (which I'm not very familiar with), I finally decided to rewrite the entire object from scratch.  Zach is fine with this and the object will remain open-source and free to the AC community.

The only question in my head is whether I should split the single object that does many things into separate ones - each with more parametric control.  Right now, there are 6 optional tiling types and I'm thinking of making this into 3 separate objects. Additionally, I'm thinking of a chequered tile and percentage weightage for type 6. (More images after the jump).

Comments and suggestions are wanted!

For ArchiCAD 13+
Download [15 kB)

Roll-Up Cabinet - ArchiCAD Object

Parameters

A couple of years ago, I'd written a tambour cabinet object for a residential project and using it again recently reminded me that I had intended to share it with the community at some point - after I'd improved it. Well, I haven't had the time to improve it but I'm posting it here anyway.

The object has a number of parameters that can be adjusted including colour, dimension (in detail) and the percentage opening in 3D.

For ArchiCAD 12+
Download [11kB]

Random Tile Object

Set of tiles with base RGB of 0.2, 0.3, 0.2

In the AC-Depository, there is a tile object called "Tiles with variable colours" by Zach Dimitorv which I thought would be a useful if extended and improved.  Wrote to him at the email ID given in the script but have no reply. Given that he's only made two posts on the forum, I wonder if he's moved on.

Anyway, for a current project I needed to have closely related colours on a tiled wall so I had to explore the RND function for the first time. It quickly became apparent that the way ArchiCAD generates random numbers isn't exactly random.  Searched the AC-Talk forum and first thread that popped up was from as far back as 2004 - and it talked about exactly this problem. Oleg helped out with a little trick to make the numbers more random and Karl gave not just a nice explanation of pseudo-random but also a test object with what he calls the "goofy function".  As usual, I learned a lot!

For whatever it's worth, what you see on the left is one of the things that can now be achieved with this object.  If anyone is in touch with Zach, please tell me how to contact him so I can give him the updated object.  Below is a screenshot of the parameters used.

Edit: Zach (Zahari Dimitrov) just responded to my message and I'll be in touch with him about extending the object further.

Room Stamp & Schedule

I've been meaning to modify the default zone stamp for ages and finally got down to it during down-time a few days ago. Basically, I wanted:

bT Room Stamp

1. Room dimensions in feet or metric
2. Ability to wrap the zone name
3. Dividing lines instead of boxes
4. Zone number on top
5. Automatic scheduling of actual skirting length (default stamp does not actually take door widths into account)

Alongside, I needed a schedule scheme to list finishes in a certain way. Here is what it looks like.

For ArchiCAD 13+

The download contains the Zone Stamp as well as an XML file to import the interactive schedule scheme.

Switchplate Object

3D View

Yesterday I finally completed a modular switchplate object that's been half-baked for many moons.  Before this, it was restricted to just 8 modules in a single line but, as of yesterday, it can have up to 3 rows of 10 modules each - which is more than what's available in most markets.

Default dimensions as well as module types are based on the Panasonic/Anchor Roma range which is the most popular and widely used one in India.

Using it over the coming weeks in live projects will tell me if there are any bugs. This image shows the object in 3D. Material options are available for switches, the plate, the circuit-breakers, indicators (on switches) and the LED night light.

What remains to be done is to see if I can change the level of detail based on MVO. I'm still trying to wrap my head around that!  At the moment, I need the detailed 3D only for schedules.

Object Interface

For ArchiCAD 13+
Download [32 kB]
